Kompletny zestaw do chłodzenia powietrza w Porsche 991.2 Turbo!
Zestaw zawiera intercoolery , Y pipe o bardzo wysokim przepływie oraz niezbędne orurowanie i akcesoria do montażu.
Porównanie do88 BigPack z (OEM intercooler/pipes):
About the intercoolers:
Already from the beginning we realized that we could not sacrifice anything to keep the cost down we just had to do the best possible in the space available in the car! First of all we made a lot of investigation and comparisons between different core types and at last really fell for a high density motorsport core which have great cooling efficiency among with a low weight. With a great core in place we started to refine the end tank design which brought us to a decision to make cast end tanks as we could then control the air flow distribution over the core in a very precise way. This is very important as a good tank design will be beneficial for both pressure drop and cooling efficiency. To be able to fit an intercooler with appropriate thickness for the job it was also necessary to design a new upper ambient air guide. This was designed in our 3D scanned environment to ensure perfect fit to the vehicle integrated air guides and our intercooler. To achieve the best air flow distribution over the core we made intercooler end tanks with 70 mm (2 3/4 inch) connections which then made it necessary to designed custom silicone hoses for all positions. The hoses are 3D designed with airflow in mind where we CFD tested each hose during development to ensure best possible flow rate of all parts! The hoses between turbocharger and intercooler are special silicone hoses that can withstand up to 240°C (464°F) continuous temperature! Another important aspect for cooling performance are to use all ambient cooling air available, to optimize this part we include air block rubber seals for all surfaces where the ambient air guides must seal properly.
With this way to build our intercoolers the weight increase compared to the OEM ones was relatively small considering the size of our intercooler and that its all made of aluminium. Our intercooler weight is 5,4 kg (11,9 lb) per piece and the 991 OEM intercooler weights 3,1 kg (6,8 lb) per piece. It might sound like a big weight increase but compared to other actors on the market with intercoolers in this size it’s a low weight!

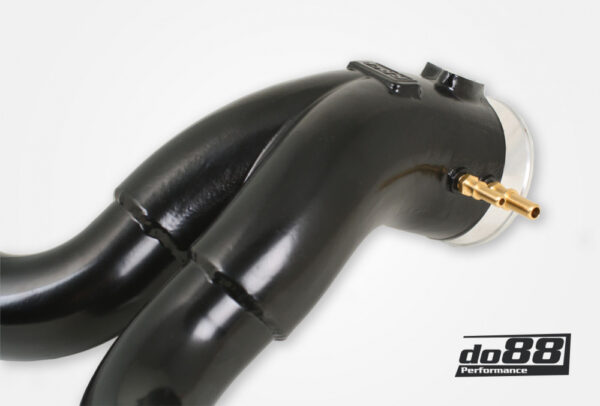

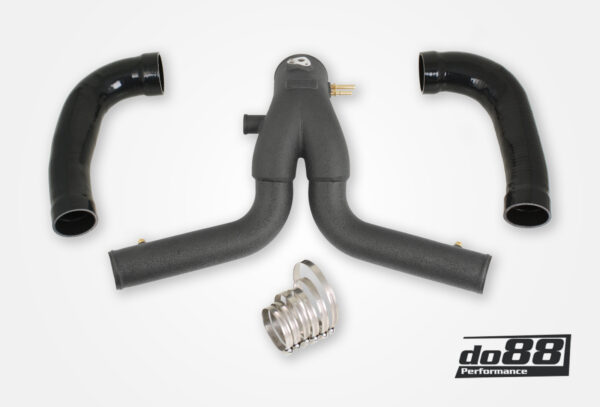

About the Y-pipe:
In the beginning of the development process of this product we spent a lot of time thinking what would be the preferred way to build a Y-pipe and here is the result of our conclusions and development process! Our pipe have both a very good flow rate and a low weight which is accommodated by composing mandrel bent lightweight pipes with a high quality 3D freeform designed cast joint between them. Onto the cast part we then welded CNC-machined connections for bov and breather hoses.
The pipes are then finished in a high quality powder coat that makes them look as good as they perform!
At the same time as our BigPack lowers the intake temperature it also flow better than the 991.2 original intercoolers! Please have a look at the air flow rates at different pressure drops in the graph below where we compared our BigPack to the original intercooler and Y-pipe in our own Superflow SF-1020 Probench to verify the final result!
Keep in mind that the OEM system was designed for the power level the car was built for originally. A power increase may cause your stock system to not be efficient enough. So even on an engine with a software tune or using your car in hot climate the do88 BigPack will give a performance increase over the OEM parts!
do88 BigPack comes as a complete package with all parts necessary for installation.
|When you order this kit, there is one choice that has to be made:
|Porsche 991.2 Turbo / Turbo S
Year models: 2015-
99111063972 / 99111063973
99111064072 / 99111064073
99111005070 / 99111064672 / 99711064773
This diagram shows intake air temperature of do88 intercooler compared to the OEM:
