The world´s first model adapted air filter kit for Porsche 992 Carrera, -S, -GTS!
Upon launching the 992 generation, Porsche had already abandoned the naturally aspirated engine. From now on, all 911´s are turbocharged which makes this entry-level legend interesting also for the ones aiming for those bigger HP-numbers. Each car model comes with its own challenges and preconditions. While the principle is the same as ever, the layout of the intercooler system is something entirely new on this platform compared to previous versions, and this also affects the air intake. Contrary to earlier versions, the 992 no longer has a common, united air filter for both turbo chargers. The air intake is still located in the decklid, now shared with the intercooler ambient duct, but the air filters themselves and their housings are located inside each rear fender, thus better shielded from the surrounding heat from the engine bay. Looking at it from the side, this solution has more thought to it, but there´s absolutely room for improvement – we give you the do88 intake kit!
- More air to your engine, less backpressure and better airflow! Airflow at 0,175 bar / 2,54 psi pressure drop: 1360-1554 CFM (1202 CFM), 13-29 % higher (depending on version)! See diagram below.
- 3D-freeform designed air filter box made in CAD environment.
- Vacuum infused, prepreg carbon for best finish and fitment.
- Comes with high quality silicone hoses and accessories.
- Fits towards OE or do88 inlet hoses (66 mm or 80 mm connection).
- Washable BMC cone filters with improved airflow. We recommend following the BMC regeneration procedure every 20,000 – 25,000 kms. See separate item.
The efficiency of a turbo charged engine is under direct influence of the inlet air temperature (IAT) and the backpressure in the system. A crucial aspect, yet often overlooked, is having sufficient airflow before the compressor to avoid surge. Less vacuum and colder air enables the turbo to produce a larger mass which in the end means more air to the intake – summing up, this means noticeable power gains. There are great power wins to be earned with a good induction system! Throughout our years in this business, with countless hours of evaluation and development, we have seen the coherent connection in between IAT, sufficient airflow to the compressor, and the impact this has on the output. With this knowledge in our pocket, it was clear to us already from the beginning that we wanted to create a closed system that is not affected by the surrounding temperature at the same extent as an open air filter is. We also saw the potential of an improvement beyond what a model adapted panel filter provide.
The finished product
We started the development by 3D-scanning the entire designated area on the car. This allowed us to work in a sensible manner, with the products in our CAD-environment using SolidWorks. The entire air filter system is optimized for airflow and radiuses and angles are reworked many times to achieve the best result! The finished product is verified with both Computer Flow Dynamics (CFD) as well with our Superflow SF1020 flowbench. All efforts are made to offer real and trustworthy data for you as a customer.
The do88 air intake kit is made from vacuum infused, prepreg carbon fiber of the finest quality. It comes with CNC-machined connections towards the turbo inlet hoses. To boost the airflow, the kit really takes advantage of the full space provided within the car´s structure. The carbon housings are made to accommodate a big, inverted cone filter from renowned BMC, featuring their finest filter media at hand. The intake kit is held in place by a stainless water jet cut bracket. The do88 intake kit replaces the entire OE air filter box and is a true performance upgrade!
Included in this kit are also custom silicone hoses made to ensure a perfect fitment towards the car´s air guides, shared with the intercoolers. This makes for a completely closed joint where no air can escape. The hoses come in a discrete, matte black finish.
This kit contains all you need to mount this on a Carrera, Carrera S or a GTS. It comes in three different versions:
- do88 intake kit alone with 66mm connections towards OE inlet hoses.
- do88 intake kit with 66mm connections and do88 66mm inlet hoses.
- do88 intake system with 80mm connections and 80mm inlet hoses.
All three options provide better airflow, see the diagram for data. The model with 80mm connections will steal more room on the inner fender, by the rear tires. Please consider this when/if further modifications are done on the vehicle.
We are very proud of the performance upgrade this kit brings – especially on tuned cars demanding more oxygen, but an otherwise strictly unmodified car will also see improvements from the better airflow!
Porsche 911 (992)
Model years: 2019-
Model: Carrera / Carrera 4 / Carrera S / Carrera 4S / Carrera GTS / Carrera 4 GTS
1. do88 intake kit alone with 66mm connections towards OE inlet hoses.
2. do88 intake kit with 66mm connections and do88 66mm inlet hoses.
3. do88 intake system with 80mm connections and 80mm inlet hoses.
992129567, 992129568, 992129620, 992129620A

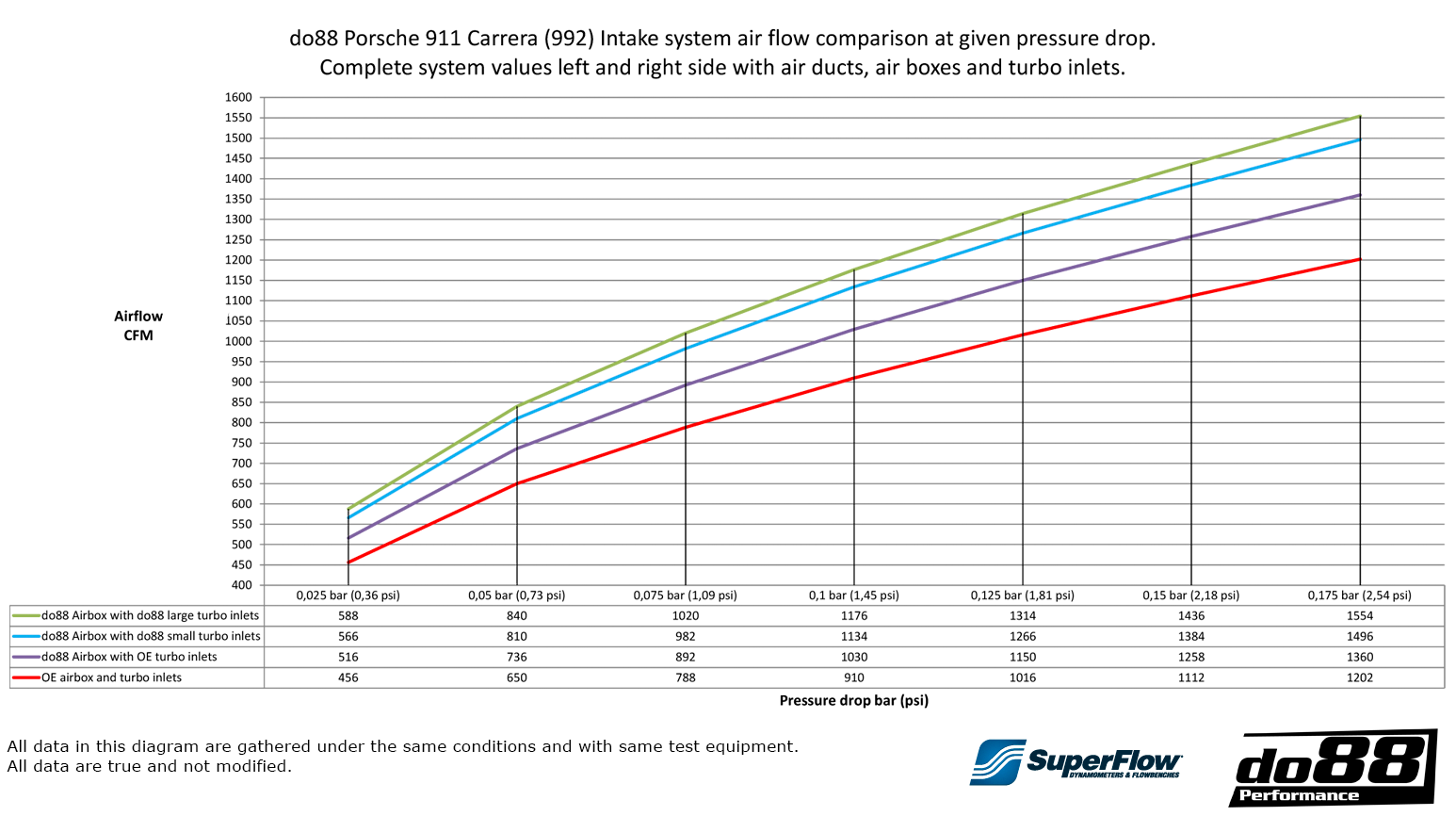

This diagram shows the air flow at different pressure drops of do88 induction system compared to the OE:
